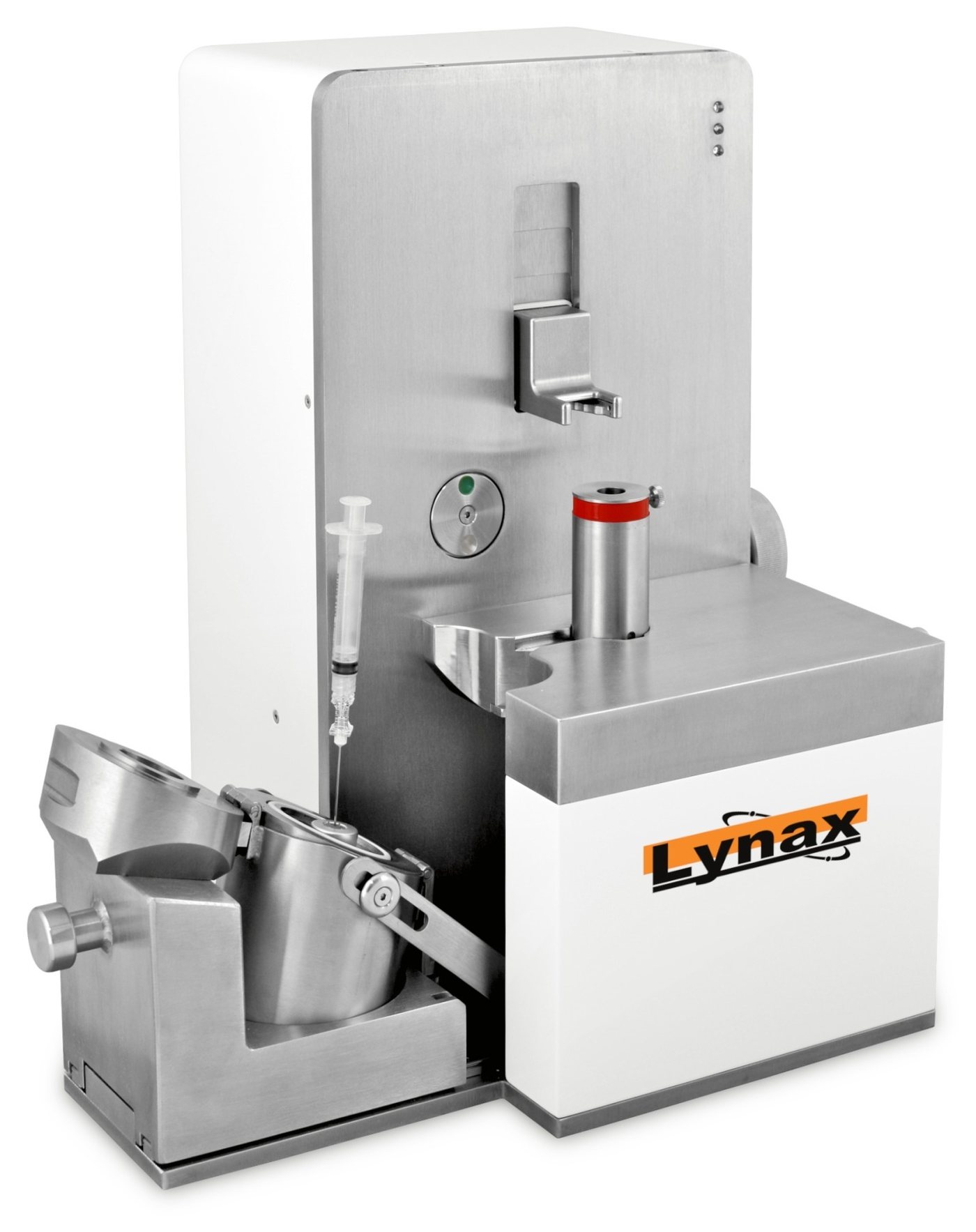

Automatic Dispensing Unit

Prepare an individual dose in just a few clicks.

The dose is ready within 1 minute with accuracy better than ±3 %.

The built-in measuring system measures the activity in the syringe directly during dose preparation and displays it on the control PC screen.

The activity remaining in the mother vial is calculated and displayed in the same way.

PET doses can be prepared in 3 ml, 5 ml and 10 ml syringes.

Advantages

• Highly cost effective
• Combination of W and Pb shielding materials
• Vial in a slanted position – no waste of radiopharmaceutical (patented solution)
• Only standard consumables are used
• No special disposable kits needed

• Quick and easy waste handling (only two needles and a vial)
• Reasonable level of automation
• Minimum set-up time for the first dose (max. 3 min)
• Automatic daily QC procedure with built-in check source

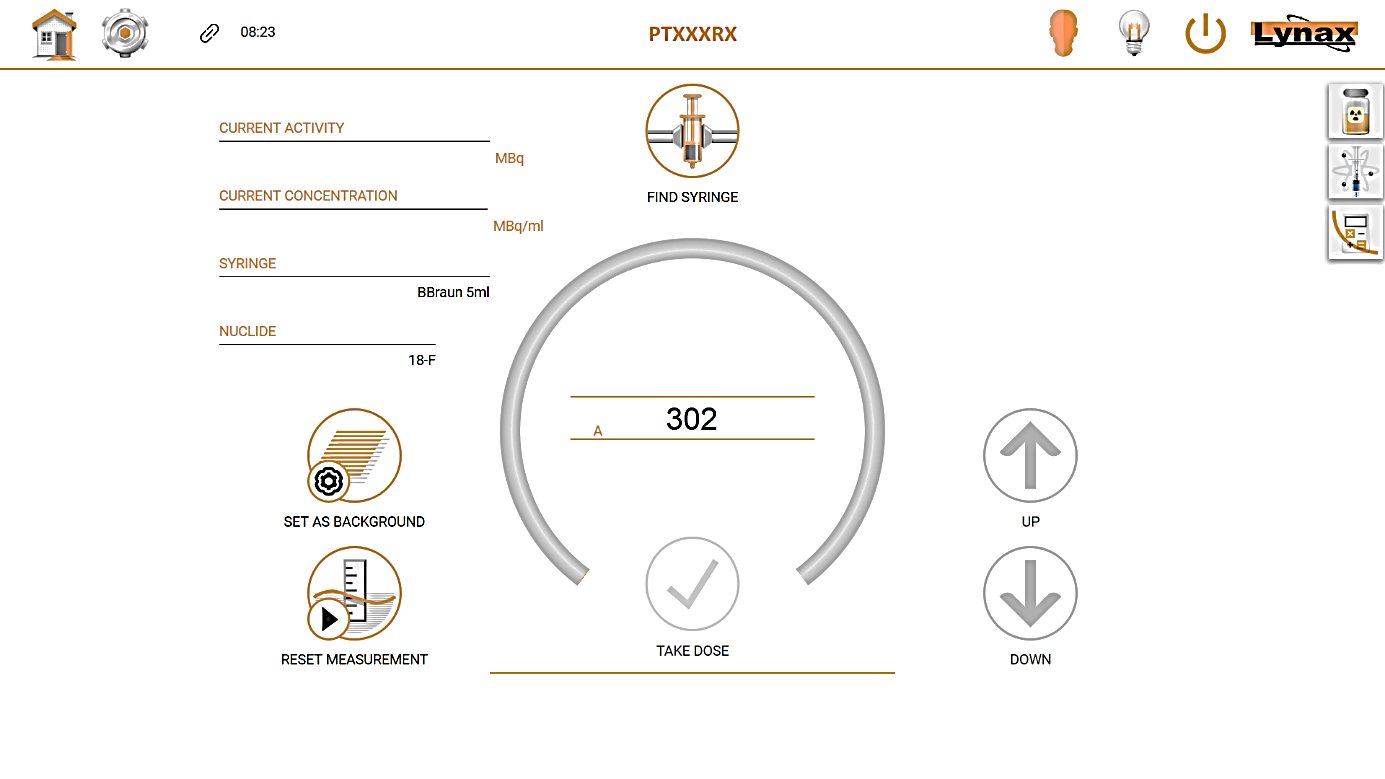

Intuitive and user-friendly software

• The software continuously displays the activity remaining in the vial (calculated value)
• Automatic linearity and stability tests with a check source built into the device body
• The software recommends an individual dose according to the patient’s weight or BMI based on preset specifications
• Selection of automatic, semi-automatic or manual mode

Technical specifications

Dimensions

Shielding parameters

• Vial shielding equivalent to 68 mm Pb – combination of W and Pb
• Syringe shields: 8–11 mm W

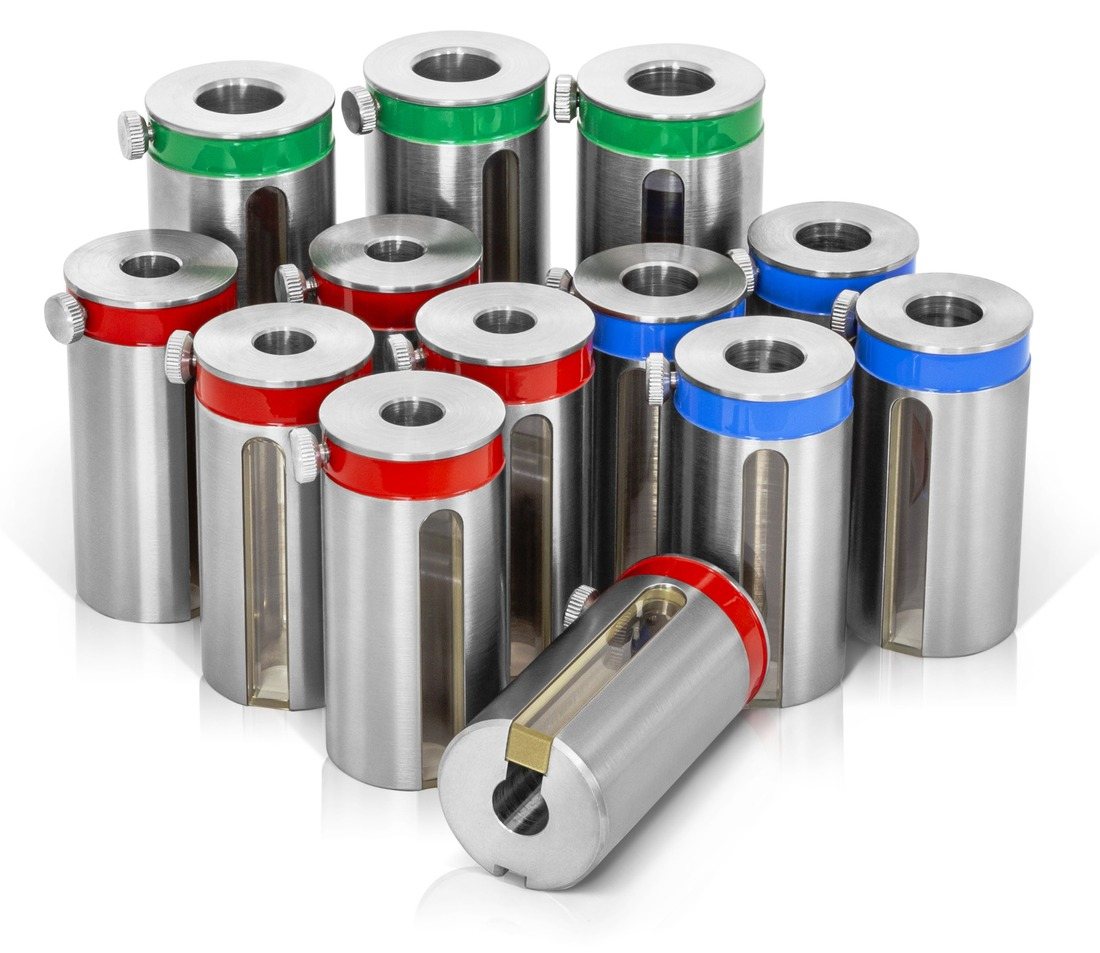

Syringe shields

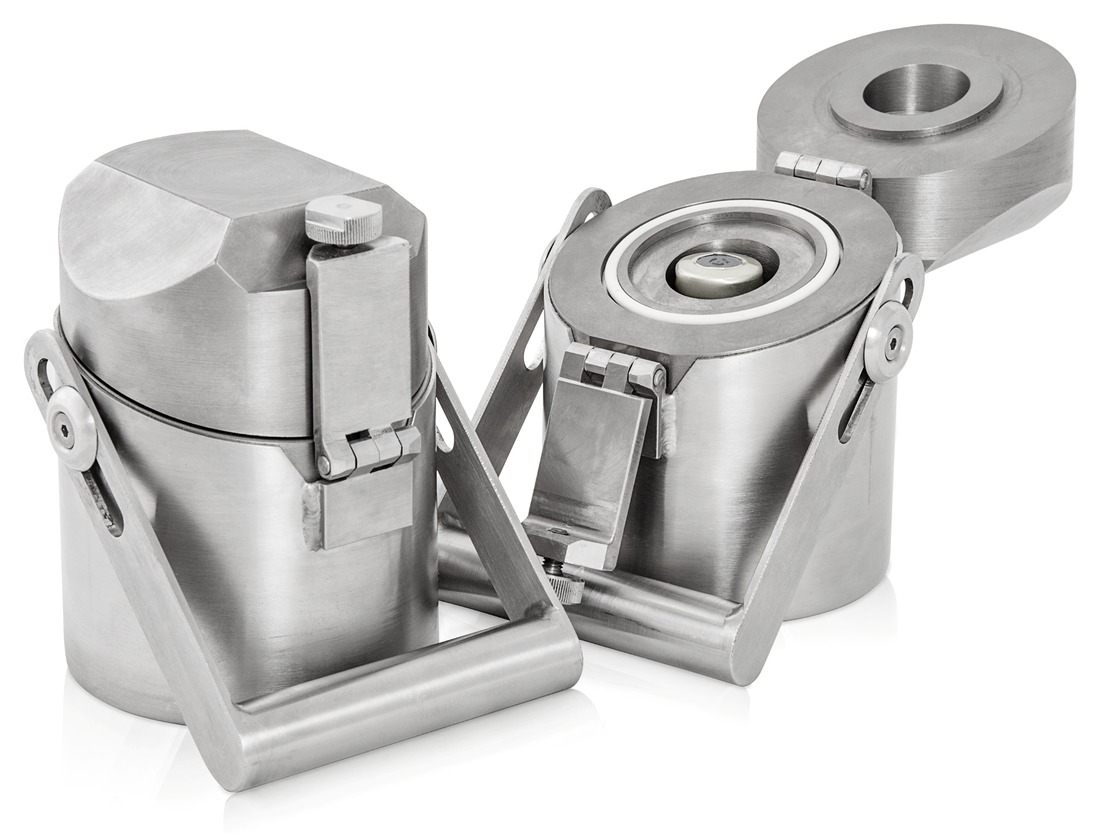

The specially designed tungsten container PT318 fits the Type A packaging set PT314R2 for radiopharmaceutical transport. This eliminates unshielded handling of a vial containing activity.

PT318 tungsten container

Consumables for one vial

• Dispensing needle: spinal needle spine-ject, 0.90 × 90 mm (delivered by Lynax)
• Venting needle: any needle longer than 70 mm
