Prepares doses of all PET RF as well as 177Lu and 131I
Two vial positions enable immediately following dose preparation of two different RF.
The built-in measuring system measures the activity in the syringe directly during the dose preparation process and displays it on the control PC screen.
The activity remaining in mother vial is calculated and displayed similarly.
PET doses can be prepared into 3 ml, 5 ml and 10 ml syringes. 177Lu doses can be prepared into 3 ml, 5 ml, 10 ml, 20 ml and 30 ml syringes.
Vial in a slanted position - no waste of RF (patented solution)
Only the standard consumables are used (BBraun or others)
No need to use any special disposable kits
Quick and easy wastes handling (only two needles and a vial)
Reasonable level of automation
Minimum time for the first dose set up needed, max. 3 min.
Automatic daily QC procedure with built in check emitter
Intuitive and User-friendly Software
Software continuously displays the activity remaining in the vial (calculated value).
Automatic linearity and stability tests - check emitter incorporated in the device body.
The software will recommend a value of individual dose according to the patient’s weight or BMI based on preset specifications.
Reliable identification of different RF
Selection of automatic, semiautomatic or manual modes.
PT318R2 - specially designed tungsten container fits also the packaging set Type A PT314R2 for RF transportation. Using this solution eliminates the unshielded manipulation with an activity containing vial.
Consumables for One Vial
1x BBraun Spinocan 0,90 x 88mm; G20
1x BBraun Sterican 0,80 x 120mm; G21
Advantages
Prepare an individual dose by just a couple of clicks!
The dose will be ready within 1 minute with the accuracy better than 3%.

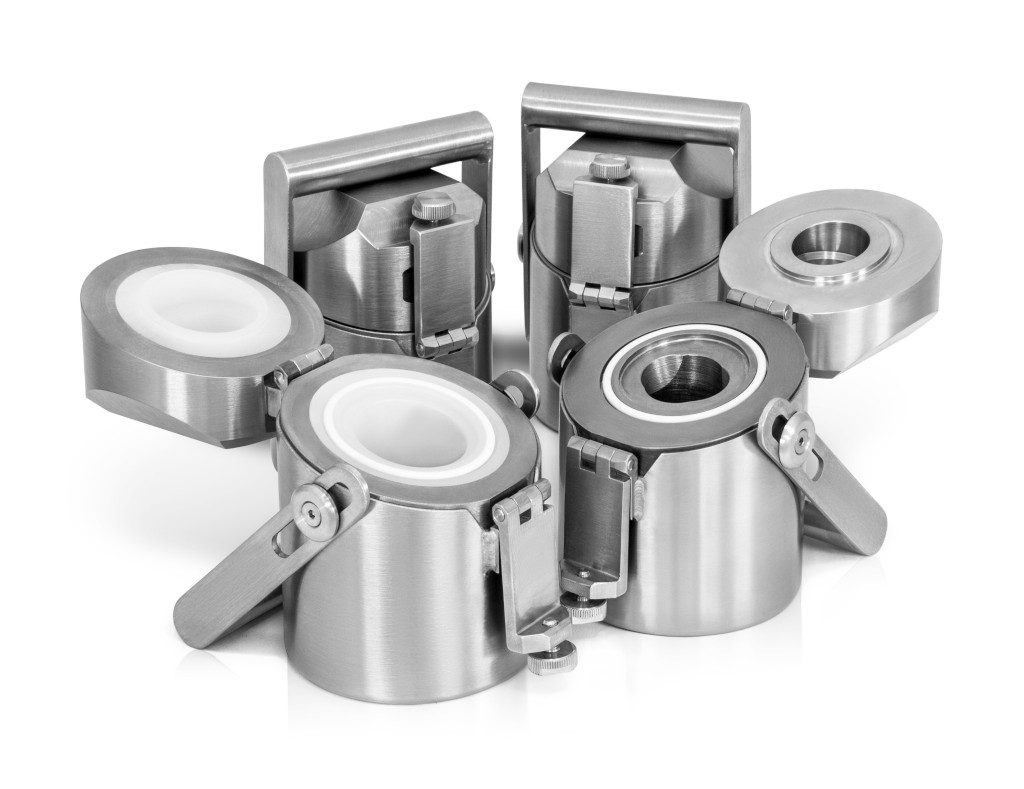

Tungsten Container PT318R2

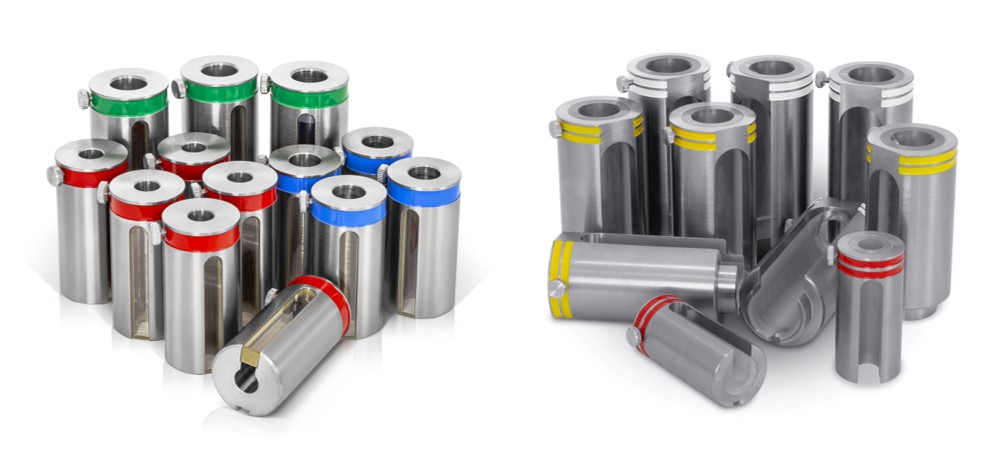

Shielding Parameters
The vial shielded by eqv. of 68mm Pb - Combination of W and Pb shielding
