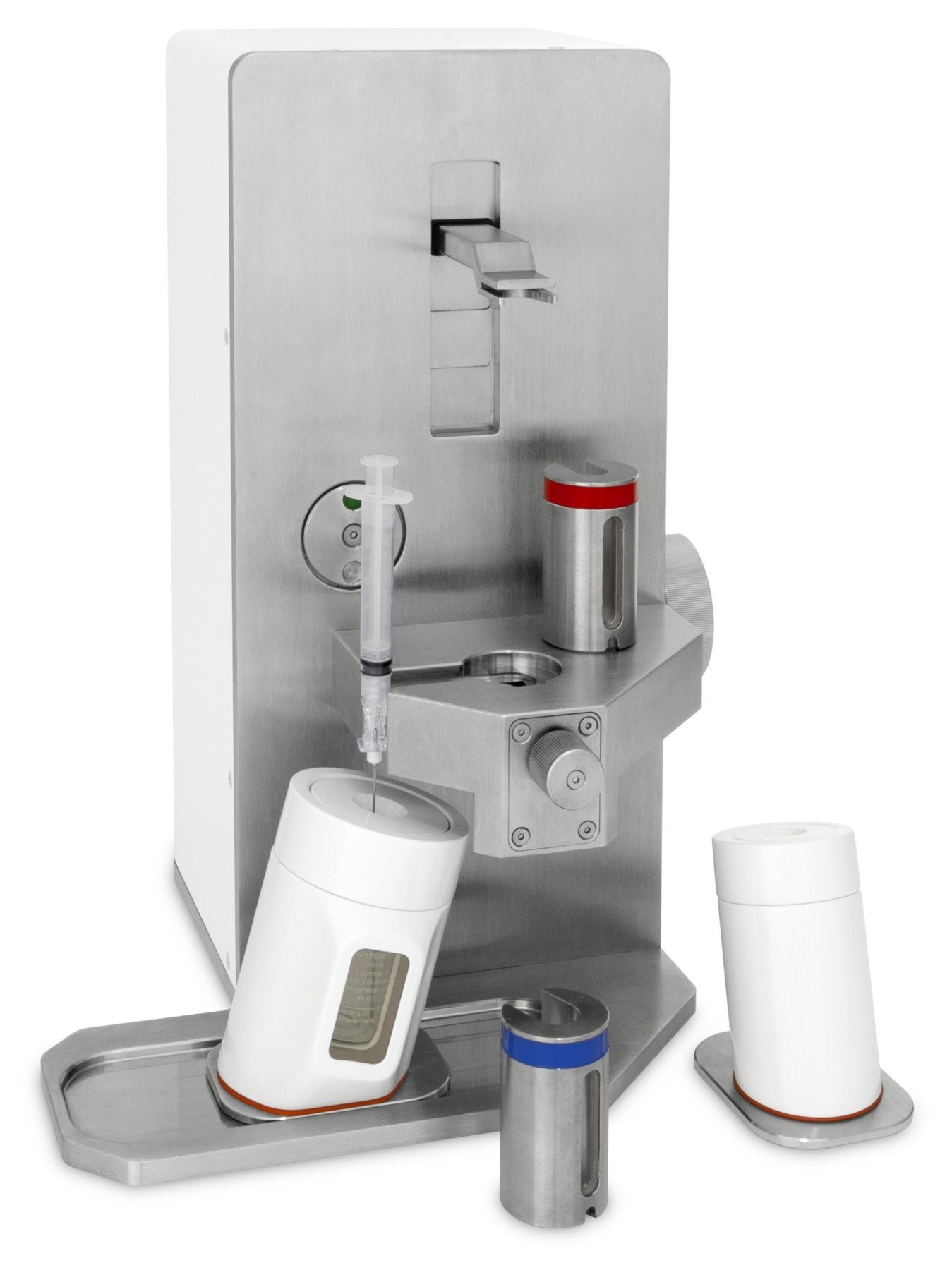

Manual Dispensing Unit
CE-marked medical device
PT468R4
Manual dose dispensing with built-in activity measurement
The built-in measuring system measures the activity in the syringe directly during dose preparation and displays it on the control PC screen.
The activity remaining in the mother vial is calculated and displayed in the same way.
Completely eliminates hand contact with the syringe during activity preparation.
The position of the syringe piston is controlled mechanically (manually).
15GBq
max. dose (99mTc), from 25 MBq
±3%
accuracy (99mTc)
80–400keV
other gamma emitters
3–10ml
syringe sizes
Technical specifications
Dose range (99mTc)25 MBq–15 GBq
Accuracy (99mTc)±3 %
For optimal accuracy, the minimum volume of radiopharmaceutical should be 0.5 ml in a 5 ml syringe and 0.3 ml in a 3 ml syringe.
After determining the calibration factors, the unit can also be used for other gamma-emitting radiopharmaceuticals with energies from 80 keV to 400 keV.
Dimensions
Height345 mm
Width235 mm
Depth264 mm
Weight22 kg

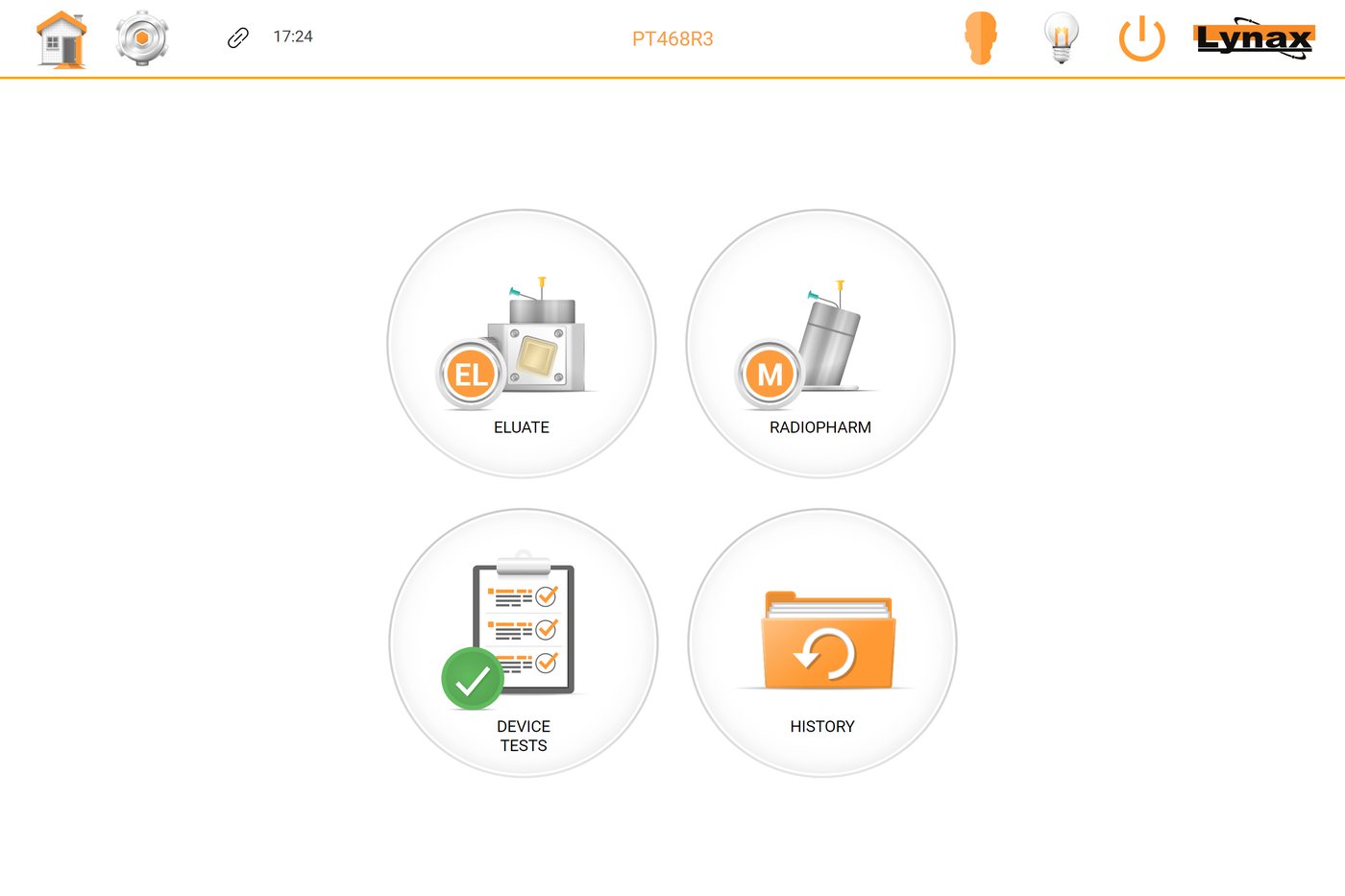

Intuitive and user-friendly software
- The software continuously displays the activity remaining in the vial (calculated value)
- Stability test with a check source built into the device body
- Reliable identification of different radiopharmaceuticals
Accessories

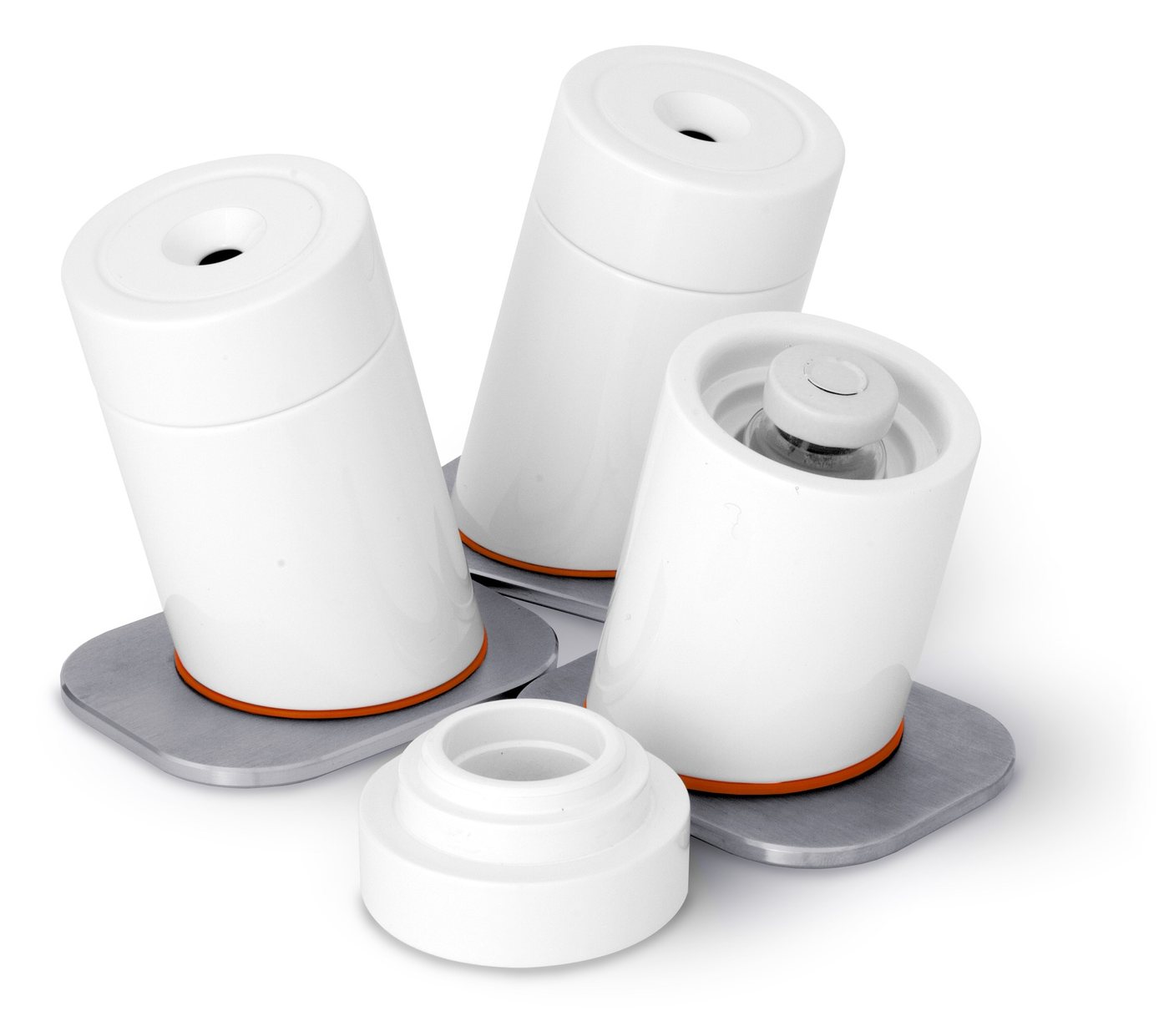

- PT643R0 Slanted stand for elution vial

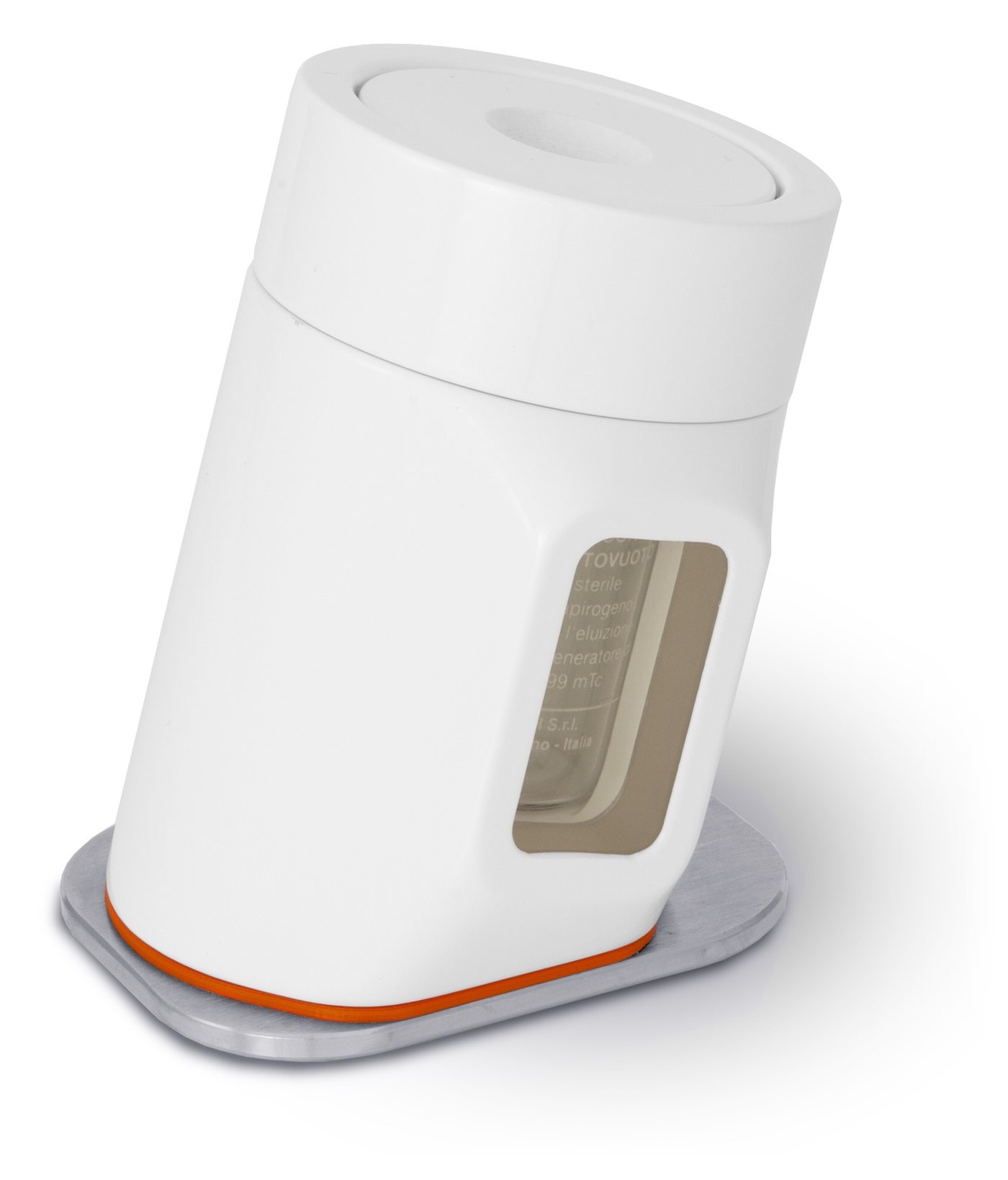

- PT500R2 Slanted stand for radiopharmaceutical
- PT644R0 Syringe shield 3 ml (red)
- PT645R0 Syringe shield 5 ml (blue)
- PT646R0 Syringe shield 10 ml (green)
Consumables for one vial
- Dispensing needle: spinal needle spine-ject, 0.90 × 90 mm (delivered by Lynax)
- Venting needle: any needle longer than 70 mm
Specifications subject to change without notice.
